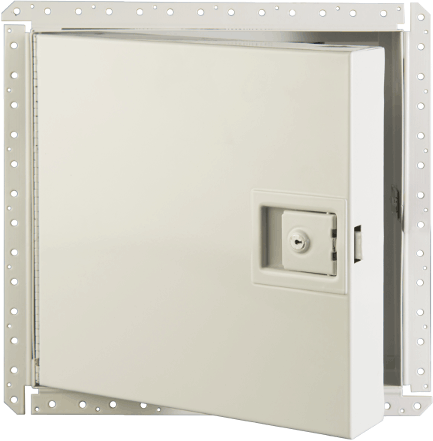

Drywall Fire Rated Access Door / Access Panel

Karp

The KRP-350FR has a textured frame and bead so drywall joint compound can be applied in sufficient thickness to conceal the flange. The KRP-350FR is insulated and rated by Underwriters Laboratories for 1.5 hour "B" label in walls and by Warnock Hersey for 3 hours in ceilings.

Model No. Door Size H x W Opening H x W Stud Catches / Latches Price *
KRP-350FR 8X8 8 3/8X8 3/8 1 $138.99
KRP-350FR 12X12 12 3/8X12 3/8 1 $141.99
KRP-350FR 14X14 14 3/8X14 3/8 1 $159.99
KRP-350FR 16X16 16 3/8X16 3/8 1 $173.99
KRP-350FR 18X18 18 3/8X18 3/8 1 $183.99
KRP-350FR 22X22 22 3/8X22 3/8 1 $211.99
KRP-350FR 24X12 24 3/8X12 3/8 1 $195.99
KRP-350FR 24X24 24 3/8X24 3/8 1 $222.99
KRP-350FR 30X22 30 3/8X22 3/8 1 $249.99
KRP-350FR 30X24 30 3/8X24 3/8 1 $280.99
KRP-350FR 30X30 30 3/8X30 3/8 1 $312.99
KRP-350FR 32X32 32 3/8X32 3/8 1 $326.99
KRP-350FR 36X22 36 3/8X22 3/8 2 $301.99
KRP-350FR 36X24 36 3/8X24 3/8 2 $305.99
KRP-350FR 36X36 36 3/8X36 3/8 2 $456.99
KRP-350FR 48X24 48 3/8X24 3/8 2 $377.99
KRP-350FR 48X36 48 3/8X36 3/8 2 $496.99
KRP-350FR 48X48 48 3/8X48 3/8 2 $549.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Download the Installation Instructions here

Request a Quote



Qty.
Specifications:
  • For Walls and Ceilings (Max. 36X24 for Ceilings)
  • For Drywall Only
  • Frame: 16 gauge steel, surrounded by galvanized drywall bead.
  • Door: 20 gauge steel, welded pan type filled with 2" thick fire-rated insulation and opens to 175°. The door is self-latching with automatic closer and interior latch release.
  • Latch: Locking Paddle Handle with key
  • Hinge: Continuous piano hinge.
  • Finish: Prime coat of rust inhibitive electrostatic powder, baked white enamel.
  • Installation Instructions
  • Also available in #4 Satin Stainless Steel




Fire Rated Access Door
