BAUCO PLUS Access Door / Access Panel

AcudorThe BP58 BAUCO PLUS access door is designed to provide access in walls and ceilings, while maintaining an invisible, architecturally pleasing appearance. The door panel is supplied with one layer of 5/8” drywall (or 1/2”). The concealed hinge and removable door panel, along with the easy installation and finishing process, make this access door the best drywall access door in the industry.

Model No. Door Size W x H Opening W x H Price *
BP58 12x12 12.25x12.25 $160.99
BP58 18x18 18.25x18.25 $219.99
BP58 24x24 24.25x24.25 $250.99
BP58 24x36 24.25x36.25 $451.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote



Qty.
Available Options: (one of each, non-returnable if selecting any options below)
Cylinder Lock (ADCL-B) $25.99
Touch Latch (ADTL-B) $25.99

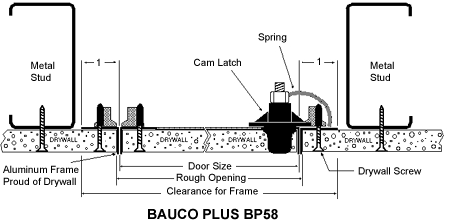

Specifications:
  • For Walls and Ceilings. Door must be installed before drywall goes up.
  • Door: Aluminum extrusion with 5/8” dry-wall inserted into door panel (1/2” also available)
  • Frame: Recessed aluminum extrusion provides similar edge to drywall bead against which wall or ceiling surface can be finished
  • Hinge: Unique concealed non corroding two point pin hinge. Hinge allows door panel to open to 120 degrees, and also allows for door panel to be removed
  • Latch: Screwdriver operated cam latch. Also available: tamper resistant torx head cam latch, cylinder lock and key, concealed touch latch
  • Finish: Mill Finish. Drywall is ready to be finished to match surrounding wall or ceiling surface.


BAUCO PLUS Drywall Access Door
