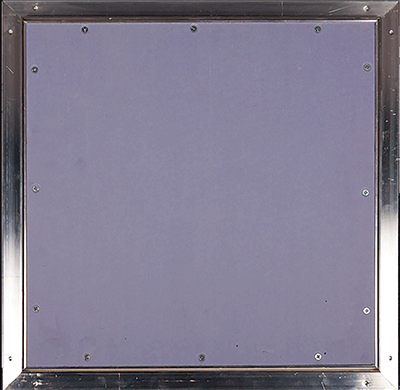

BAUCO PLUS II Access Door / Access Panel

AcudorThe BAUCO PLUS II access door is designed to provide access in walls and ceilings, while maintaining an invisible, architecturally pleasing appearance. The door panel is supplied with one layer of 5/8” drywall. The concealed hinge and removable door panel, along with the easy installation and finishing process, make this access door the best drywall access door in the industry.

Model No. Door Size W x H Opening W x H Price *
Bauco Plus II 8x8 8.25x8.25 $123.99
Bauco Plus II 12x12 12.25x12.25 $129.99
Bauco Plus II 16x16 16.25x16.25 $163.99
Bauco Plus II 18x18 18.25x18.25 $173.99
Bauco Plus II 24x24 24.25x24.25 $199.99
Bauco Plus II 24x36 24.25x36.25 $364.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Download the Installation Instructions here


Request a Quote



Qty.
Available Options: (one of each, non-returnable if selecting any options below)
Cylinder Lock (ADCL-B) $25.99
Screwdriver Latch (ADSDL-B) $25.99
Specifications:
  • For Walls and Ceilings
    NOTE:Hinge should be on the bottom when installed in a wall. Door must be installed before drywall goes up.
  • Door: Aluminum extrusion with 5/8" drywall inserted into door panel (1/2" also available)
  • Frame: Recessed aluminum extrusions. Frame acts as corner bead for finishing. 1/16” gap between frame and door
  • Hinge: Free pivoting. Door can be removed for maximum clearance
  • Latch: Concealed touch latch
  • Finish: Mill Finish. Drywall is ready to be finished to match surrounding wall or ceiling surface.
