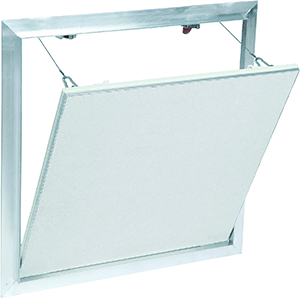

Removable Access Panel with 5/8" Drywall Inlay

FF SystemsThe access panel consists of a welded aluminum frame and is available with standard 5/8" (15.9 mm) inlayed drywall or 1/2" (12.7 mm) inlayed drywall by request, and two latches. Both an outer and an inner frame assembly consists of high grade aluminum which is bonded with a special welding process.

For sizes 12” x 12” (305 mm x 305 mm) and up the access panels are equipped with a safety-system to prevent accidental opening. This safety system must be reattached if the hatch is removed.

A reveal of just 1/16" (1,59 mm) is all that is visible of the access panel that blends into a wall or ceiling. The concealed snap locks open the access panel when pressure is applied to the spring loaded latch side.
The panel door is equipped with a perimeter seal. Compare against the Bauco Plus II door.

Model No. Door Size H x W Opening H x W Touch Latches Price *
FF_F2-8X8 8X8 8 3/8 X 8 3/8 2 $69.99
FF_F2-12X12 12X12 12 3/8 X 12 3/8 2 $79.99
FF_F2-16X16 16X16 16 3/8 X 16 3/8 2 $89.99
FF_F2-18X18 18X18 18 3/8 X 18 3/8 2 $94.99
FF_F2-20X20 20X20 20 3/8 X 20 3/8 2 $101.99
FF_F2-24X24 24X24 24 3/8 X 24 3/8 2 $113.99
FF_F2-24X36 24X36 24 3/8 X 36 3/8 2 $164.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Installation Instruction

Request a Quote


  • Superior engineering & innovative design
  • Standard 5/8" (15.9 mm) inlayed drywall,
    1/2" (12.7 mm) by request
  • Fast delivery
  • Quick and easy installation
  • Solid aluminum frame
  • Flush installation in ceilings and walls
  • Available in moisture / mildew resistant green board
    and cement board
  • Fully detachable hatch
  • Concealed Touch Latch
