Flush Access Door / Access Panel

AcudorThe Acudor UF-5500 is a universal flush access door for walls and ceilings, designed for installation in all types of flush surfaces. The drawn flanged door panel has rounded corners for both safety and an architecturally pleasing appearance. The frame is drawn as one piece, which provides excellent strength and rigidity. Fabricated from galvanized steel and coated with a white baked on polyester powder paint, this door will perform well in plumbing, high corrosive and exterior applications.
This door is not watertight.

  • Drawn flanged door panel with rounded corners
  • Concealed hinge and welds
  • Galvanized steel material with white baked on polyester powder coat
Model No. Door Size W x H Opening W x H Latch Price *
UF-5500 6x6 6-3/8x6-3/8 1 $17.99
UF-5500 8x8 8-3/8x8-3/8 1 $18.99
UF-5500 12x12 12-3/8x12-3/8 1 $22.99
UF-5500 15x15 15-3/8x15-3/8 1 $35.99
UF-5500 18x18 18-3/8x18-3/8 1 $40.99
UF-5500 24x24 24-3/8x24-3/8 2 $53.99

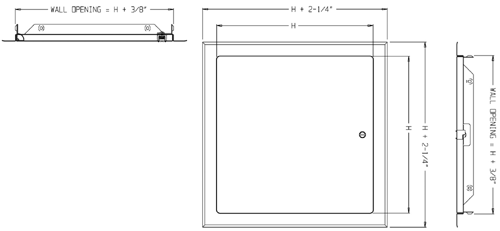

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote


Available Options: (one of each, non-returnable if selecting any options below)
Standard Cylinder Lock (ADSCL) $14.99
Quarter turn knob latch (ADQTKL) $14.99

  • For Walls and Ceilings
  • Material: 16” x 16” and smaller = 20 gauge galvanized steel door & frame
    Over 16” x 16” = 18 gauge galvanized steel door & frame
  • Door: Flush To Frame- Drawn flanged door panel with rounded corners.
  • Frame: Drawn one piece trim flange and mounting frame
  • Hinge: Concealed
  • Latch: Screwdriver operated cam latch. Also available: Cylinder lock & key, allen head cam latch, spanner head cam latch
  • Finish: White baked on polyester powder coat

Flush Access Door
