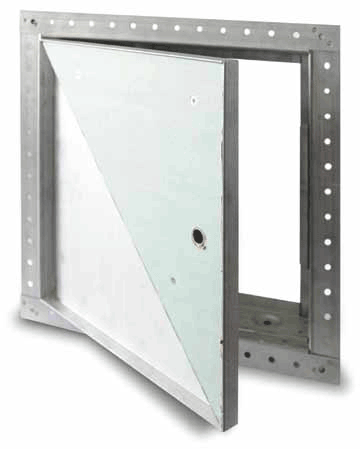

Recessed Drywall Access Door / Access Panel

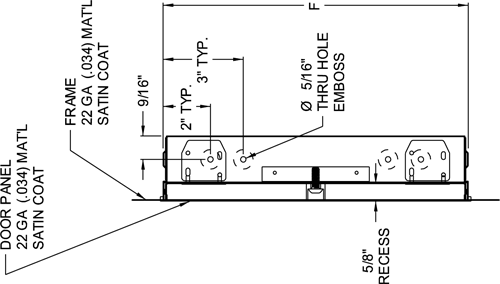

AcudorThe Acudor DW-5015 recessed access door is designed for flush installation in drywall surfaces when it is required to conceal the door panel, which is recessed 5/8" to receive drywall. The flange of the door is a textured galvanized steel taping bead with pre-punched holes. Drywall compound is applied over the beading at the same time the drywall joints are finished.
For use in acoustical ceilings, the Acudor AT-5020 is identical to the DW-5015, with the galvanized steel taping bead flange being omitted.

Model No. Door Size W x H Opening W x H Latch Price *
DW-5015 12x12 12-3/8x12-3/8 1 $71.99
DW-5015 16x16 16-3/8x16-3/8 1 $98.99
DW-5015 18x18 18-3/8x18-3/8 1 $101.99
DW-5015 24x24 24-3/8x24-3/8 2 $133.99
DW-5015 24x36 24-3/8x36-3/8 2 $194.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Download the Installation Instruction here

Request a Quote


Available Options: (non-returnable if selecting any options below)
Cylinder Lock (ADCL-1) $19.99
  • For Walls and Ceilings
  • Material: Steel: 22 gage door, 22 gage mounting frame.
  • Door: Recessed 5/8".
  • Frame: Galvanized steel drywall taping bead on all sides.
  • Hinge: Concealed.
  • Latch: Slotted screwdriver cam latch
    Also available: cylinder lock and key, allen head cam latch, spanner head cam latch
  • Finish: Satin coat steel

Recessed Drywall Access Door
