Walk Through Access Door / Access Panel

The Acudor WD-8000 Walk Through Access Door is designed to provide convenient walk through access to duct work interiors and air handling units. The heavy duty construction along with a continuous hinge and compression handles provide for low leakage in low to medium pressure systems and plenums.

Model No.	Door Size W x H	Opening W x H	Price *
WD-8000	24x36	24.25x36.25	$295.99
WD-8000	24x48	24.25x48.25	$319.99
WD-8000	24x60	24.25x60.25	$354.99
WD-8000	24x72	24.25x72.25	$385.99
WD-8000	30x36	30.25x36.25	$300.99
WD-8000	30x48	30.25x48.25	$359.99
WD-8000	30x60	30.25x60.25	$453.99
WD-8000	30x72	30.25x72.25	$509.99
* Plus shipping and handling. Doors larger or equal to 30" are subject to oversize charge

Download the Submittal/Data sheet here

Request a Quote

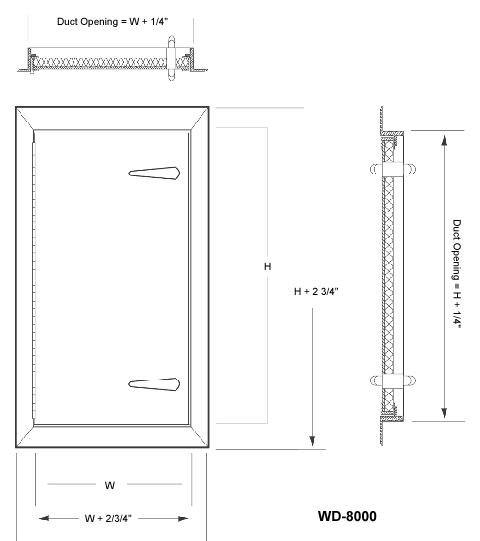

Specifications:

For Walls Only
Door: 24 gage galvanized steel, double panel.
Frame: 1 15/16" wide x 1 1/2" deep extruded aluminum with mitred corners.
Hinge: Continuous steel piano hinge-opens 180°.
Insulation: Door panel filled with 1" thick fiberglass insulation.
Gasketing: 1/8" thick x 1/2" wide closed cell neoprene gasketing between door and frame.
Latch: Dual acting compression handles-operable from both sides. Units 48" high to have 3 handles.
Finish: Mill finish.
