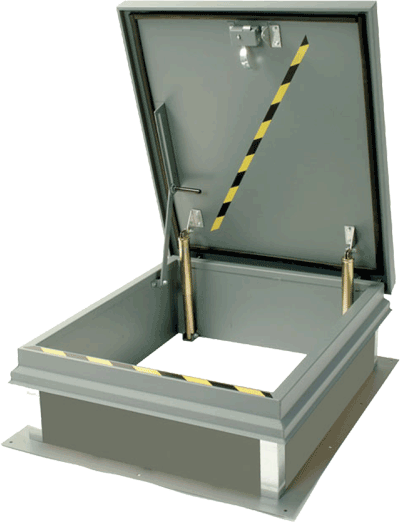

Galvanized Steel Roof Hatch

Elmdor

Elmdor/Stoneman

Roof Access Hatches are designed to provide convenient, cost saving access to the roofs ofbuildings, allowing for ladders and stair access to the roof from the interior of the building. Elmdor Roof Access Hatches are designed and engineered for durability and safety, with ease of installation. The Roof Access Hatches install easily over the roof opening and are secured from the base flange to the roof. For commercial application.
Model No. Door Size W x H Price *
E-2424-RAH-W 24x24 $1,151.99
E-2430-RAH-W 24x30 $1,193.99
E-2436-RAH-W 24x36 $1,261.99
E-3030-RAH-W 30x30 $1,265.99
E-3036-RAH-W 30x36 $1,313.99
E-3054-RAH-W 30x54 $1,581.99
E-3096-RAH-W 30x96 $2,161.99
E-3636-RAH-W 36x36 $1,481.99
E-3648-RAH-W 36x48 $1,585.99
E-4848-RAH-W 48x48 $1,849.99
* Includes LTL Freight (continental US only, residential delivery at additional charge. Additional fees such as lift gate or jobsite delivery are not included and will have to be collected if applicable)

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote




* Wood lining * Fesco lining
* The lining covers the insulation

Please select the type of delivery:

Commercial Address Delivery (included)
(Loading dock and/or fork lift are available)
Jobsite Delivery $65.00
Lift Gate $65.00
Residential Address Delivery $110.00





Qty.

Specifications:
  • Curb: 14 gage (G90) galvanized steel with durable recoatable gray primer finish. 12" in height with a 3-1/2" wide mounting flange with mounting holes for roof attachment.
  • Latch: Automatic, hold-open arm with vinyl grip and compression springs encased in telescopic tubes for smooth door operation.
  • Finish: Galvanized Steel: Gray primer finish.
  • Cover: 14 gage (G90) galvanized steel with radius corners for safety, fully welded at the corners for watertight construction.

Elmdor Galvanized Steel Roof Hatch
