Aluminum Wall Mounted Ladder

AcudorAcudor aluminum wall mounted ladders are ideal to be used with any roof hatch. Ladder conforms to OSHA Standards 29CFR-1910.23.
For additional support this ladder can also be mounted to the floor using the optional floor bracket.


Model No. Overall Height Price *
AWML 5'0" $1,115.99
AWML 6'0" $1,265.99
AWML 7'0" $1,390.99
AWML 8'0" $1,511.99
AWML 9'0" $1,633.99
AWML 10'0" $1,816.99
AWML 11'0" $1,924.99
AWML 12'0" $2,064.99
AWML ** 13'0" $2,186.99
AWML ** 14'0" $2,404.99
AWML ** 15'0" $2,550.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

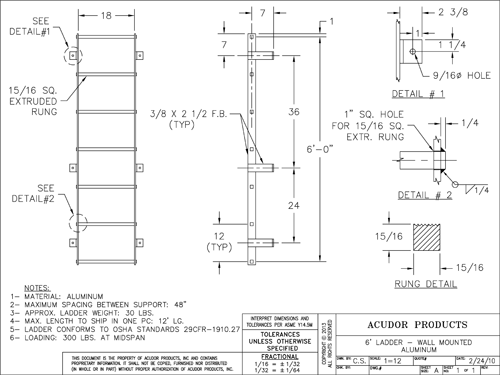

Download the Drawing here

Download the TSP-1 Installation guide here

Request a Quote



Available Options:
Floor Bracket (AWML-FL) $56.99
Telescoping Safety Post (TSP-1) $327.99


Qty.
Specifications:
  • Aluminum Wall Mounted Ladder
  • 15/16” square extruded aluminum climbing rungs spaced on 12” centers
  • Loading: 300 LBS at midspan
  • 3/8” x 2 ½” Aluminum Side Members
  • 7” Stand-off brackets
  • Mill Finish

Acudor Aluminum Wall Mounted Ladder
