Aluminum Roof Hatch

AcudorAcudor Roof Hatches are designed to provide convenient, economical access to the Roof of a building. Available in prime coated galvanized steel or aluminum. Our hatches are designed with safety, durability and ease of operation in mind. For commercial application.

Model No. Door Size W x H Price *
A3232 24x24 $954.99
A3244 24x36 $1,030.99
A3838 30x30 $1,045.99
A3844 30x36 $1,052.99
A4444 36x36 $1,210.99
A5656 48x48 $2,004.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Download the Installation guide here

Download the TSP-1 Installation guide here

Download the SLE-Y Installation guide here

Request a Quote

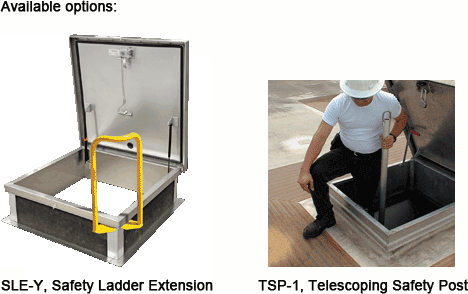

Available Options:
Safety Ladder Extension (SLE-Y) $139.99
Telescoping Safety Post (TSP-1) $204.99

Please select the type of delivery:
Commercial Address Delivery (included)
(Loading dock and/or fork lift are available)
Jobsite Delivery $65.00
Residential Address Delivery $110.00

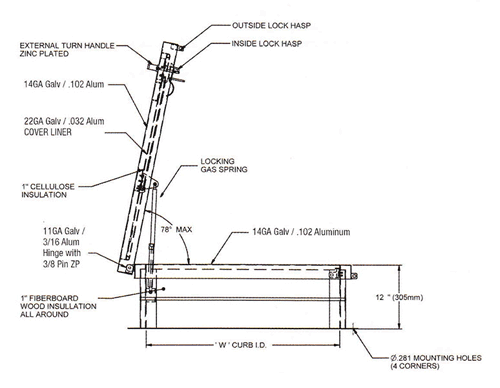

  • Curb: 0.102 aluminum with 1" thick fiber board roof Insulation at curb exterior. Curb is 12" high, with 3.375" wide bottom flange and pre-drilled mounting holes.
  • Hinge: 3/16" aluminum pivot hinge
  • Latch: T Handle
  • Finish: Mill finish
  • Cover: 0.102 aluminum in box type design with 1" cellulose Insulation and 22 gage galvanized steel/ cover liner. Continuous EPDM weather/draft seal gasket is attached to inside of cover, providing a flush tight fit. The cover is designed to support a live load of 40 pounds/sq ft.

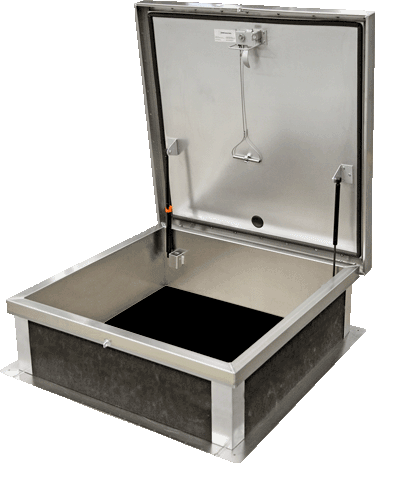

Acudor Aluminum Roof Hatch
Roof Hatch Accessories
