Larsen's Cameo Surface Mounted Bubble Fire Extinguisher Cabinet

Model Description
Tub Size WxHxD
Price *
C2409SM Holds 5 and 10 lb Fire Extinguishers
13 x 27 1/2 x 3 1/2
C3216SM Holds 20 lb Fire Extinguishers
19 1/2 x 35 1/2 x 3 1/2
See also: Cameo Replacement Bubbles PA Code Information

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote


Available Options:
Aluminum Finish (AL) $39.99
Stainless Steel Finish (SS) $209.99
Larsen's Lock (LSBL) $12.99
Vertical Decal (LVDL) $4.99
      If lettering, select color Black  Red
Larsen's Vigilante Alarm (LVA-SM) $63.99
Support Bracket (LB2-5) $29.99
Support Bracket (LB2-10) $29.99

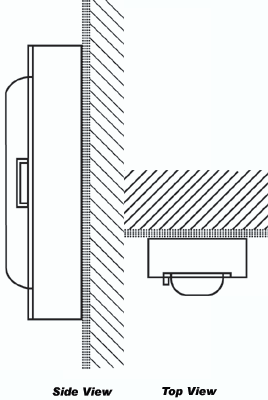

GENERAL DESCRIPTION: Larsen's Cameo Series provides an attractive as well as a safe and practical method of housing a fire extinguisher. By projecting the extinguisher into its protruding bubble, the Cameo allows for not only installation into a shallow wall but also full, 180 degree visibility of the cabinet's contents.

The manufacturer's standard bracket must be used to support the fire extinguisher inside the Cameo cabinet. (Pictures shows optional LB-2 bracket that can be used additionally to manufacturers bracket) The standard door and trim material is steel, and optional materials include both aluminum and stainless steel.

All door frames are 1/2 inch thick, hollow-metal design. All units have a satin finish pull handle with a self-adjusting roller catch; and a continuous piano hinge constructed of material which matches the door and trim.

BOX SPECIFICATION: All recessed and semi-recessed cabinets and surface-mounted steel cabinets have a heavy gauge, white baked enamel box. Surface mounted cabinets with aluminum door and trim have a box constructed entirely of clear or color anodized aluminum. Surface-mounted cabinets with stainless steel door and trim have a box constructed entirely of 304 stainless steel with a #4 finish.

TRIM AND DOOR SPECIFICATION: The Cameo trim and door is identical to the Architectural Series except that the Cameo door is glazed with a vacuum-formed acrylic bubble. With the exception of the bronze and red semi-transparent bubbles, the optional lettering is placed on the back of the bubble to prevent damage.

Download Larsen's Catalog Here

(Fire extinguisher shown in picture not included)


Larsen's Cameo Surface Mounted Fire Extinguisher Cabinet
See also:
Cameo Replacement Bubbles - Larsen's Cameo Series Replacment Bubbles
Fire Extinguishers - We offer 2.5, 5, 10 and 20 LB Fire Extinguishers
Fire Extinguisher Signs - Vinyl Fire Extinguisher Signs
