Galvanized Steel Smoke Vent

AcudorAcudor Smoke Vents release heat, smoke and noxious gases during a fire. Each vent is designed to automatically open when a fusible link inside the vent reaches a certain temperature. (165 degree)


Model No. Curb I.D W x H Price *
SVG 24x24 $1,350.99
SVG 24x36 $1,436.99
SVG 30x36 $1,415.99
SVG 36x36 $1,683.99

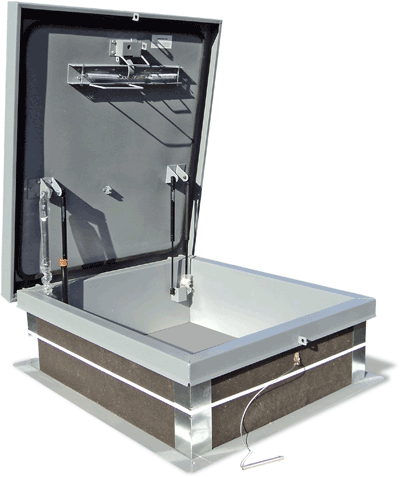

Click to enlarge

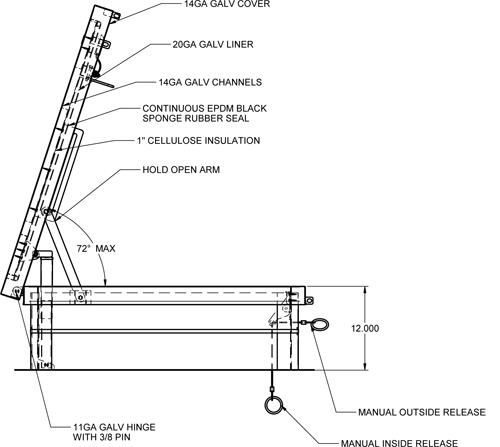

Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote



Available Options:
Resettable McCabe Link (RMCL) $299.99


Qty.
Specifications:
  • Cover: 14 gage galvanized steel /.125 aluminum in box type design with 1" rigid fiberglass insulation and 22 gage galvanized steel /.040 aluminum cover liner. Continuous santoprene weather / draft seal is attached to inside of cover to provide a flush, tight fit.
  • Curb: 14 gage galvanized steel /.125 aluminum with 1" rigid fiberglass insulation at curb exterior. Curb is 12" high, and has 3-1/2" wide mounting flange with pre-drilled holes.
  • Hinge: Steel butt hinges with brass pin.
  • Opening Device: Fully enclosed compression spring operators allow cover to open against 10-lbs./sq. ft. wind or snow load when released.
  • Latch: Manual inside / outside release that works with a fusible link or a resettable electric link (optional).
  • Finish: Galvanized steel: prime painted with rust-inhibiting grey primer.
  • Optional:
    • Acrylic domes
    • Curb Mounted
    • Louvered Curbs
    • Modified Curb for Metal Building
    • Stainless Steel Hardware

Acudor Galvanized Steel Smoke Vent
